Custom Styling

In this section, you'll learn about Terra Draw's advanced styling capabilities.

Terra Draw provides extensive styling capabilities for all drawing modes. Styling follows the patterns described in the official styling guide.

Point style

The TerraDrawPointMode is styled using the following properties:

Property	Type	Example Value	Description
pointColor	Hex Color	#00FFFF	The fill color of the point
pointWidth	Integer	2	The width of the point
pointOutlineColor	Hex Color	#00FFFF	The outline color of the point
pointOutlineWidth	Integer	2	The outline width of the point

LineString style

The TerraDrawLineStringMode is styled using the following properties:

Property	Type	Example Value	Description
lineStringColor	Hex Color	#00FFFF	The color of the linestring.
lineStringWidth	Number (0-1)	0.7	The fill opacity of the polygon
closingPointColor	Hex Color	#00FFFF	The fill color of the closing point
closingPointWidth	Integer	1	The width of the closing point
closingPointOutlineColor	Hex Color	#00FF00	The outline color of the closing point
closingPointOutlineWidth	Integer	2	The outline width of the closing point

TerraDrawFreehandLineStringMode also has the same properties for styling.

Polygon style

The TerraDrawPolygonMode is styled using the following properties:

Property	Type	Example Value	Description
fillColor	Hex Color	#00FFFF	The fill color of the polygon
fillOpacity	Number (0-1)	0.7	The fill opacity of the polygon
outlineColor	Hex Color	#00FFFF	The outline color of the polygon
outlineWidth	Integer	2	The outline width of the polygon
closingPointColor	Hex Color	#00FFFF	The fill color of the closing point
closingPointWidth	Integer	1	The width of the closing point
closingPointOutlineColor	Hex Color	#00FF00	The outline color of the closing point
closingPointOutlineWidth	Integer	2	The outline width of the closing point

Other polygon drawing modes such as TerraDrawFreehandMode, TerraDrawCircleMode, etc also follows same properties to customise style.

Change colors

Use the last exercise 3's source code, we are going to add custom style for point, line and polygon mode.

Add styles option for TerraDrawPointMode, TerraDrawLineStringMode and TerraDrawPolygonMode.

draw = new TerraDraw({
    modes: [
        new TerraDrawPointMode({
            styles: {
                pointColor: '#FFFFFF',
                pointWidth: 5,
                pointOutlineColor: '#FF0000',
                pointOutlineWidth: 1
            }
        }),
        new TerraDrawLineStringMode({
            styles: {
                lineStringColor: '#FF0000',
                lineStringWidth: 2,
                closingPointColor: '#FFFFFF',
                closingPointWidth: 3,
                closingPointOutlineColor: '#FF0000',
                closingPointOutlineWidth: 1
            }
        }),
        new TerraDrawPolygonMode({
            styles: {
                fillColor: '#FFFFFF',
                fillOpacity: 0.7,
                outlineColor: '#FF0000',
                outlineWidth: 2,
                closingPointColor: '#FFFFFF',
                closingPointWidth: 3,
                closingPointOutlineColor: '#FF0000',
                closingPointOutlineWidth: 1
            }
        }),
    ]
})

This style setting will change point, line and polygon ourtline color to red.

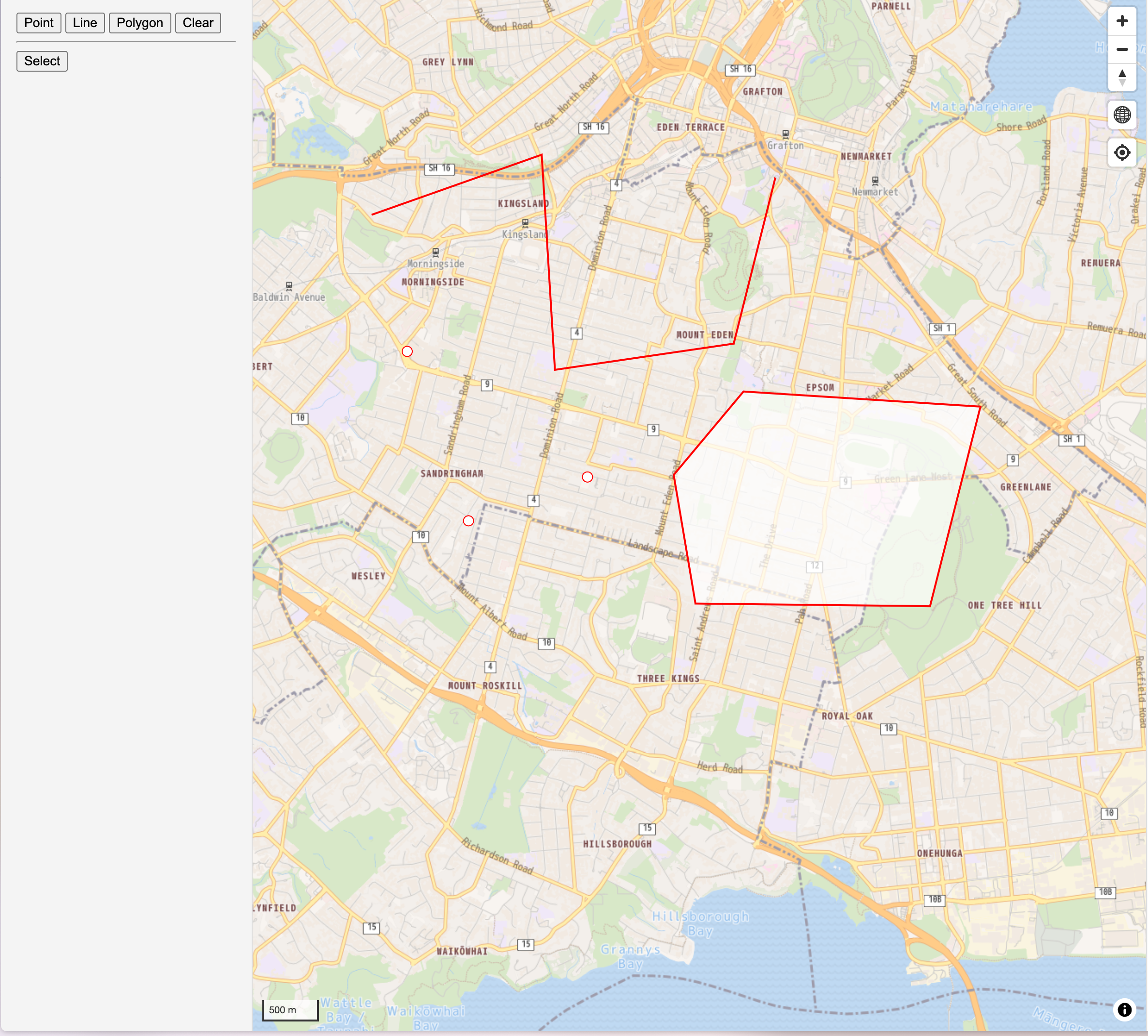

Figure 1: Change color to red for point, line and polygon mode

Custom style for Select mode

However, styles when selecting features with TerraDrawSelectMode is still using default style.

Add styles property to your TerraDrawSelectMode like below.

draw = new TerraDraw({
    modes: [
        new TerraDrawSelectMode({
            // Add custom style for select mode
            styles: {
                // Point colour
                selectedPointColor: "#FF0000",
                selectedPointWidth: 7,
                selectedPointOutlineColor: "#FFFF00",
                selectedPointOutlineWidth: 2,
                // LineString colour
                selectedLineStringColor: "#FFFF00",
                selectedLineStringWidth: 4,
                // Polygon colour
                selectedPolygonColor: "#FF0000",
                selectedPolygonFillOpacity: 0.7,
                selectedPolygonOutlineColor: "#FFFF00",
                selectedPolygonOutlineWidth: 4,
                // Selection point colour
                selectionPointColor: "#FF0000",
                selectionPointWidth: 8,
                selectionPointOutlineColor: "#FFFF00",
                selectionPointOutlineWidth: 2,
                // Midpoint colour
                midPointColor: "#FF0000",
                midPointWidth: 6,
                midPointOutlineColor: "#FFFF00",
                midPointOutlineWidth: 2
            },
            flags: {
               // keep flags settings from previous exercise
            }
        })
    ]
})

This code will change point and polygon outline color for select mode.

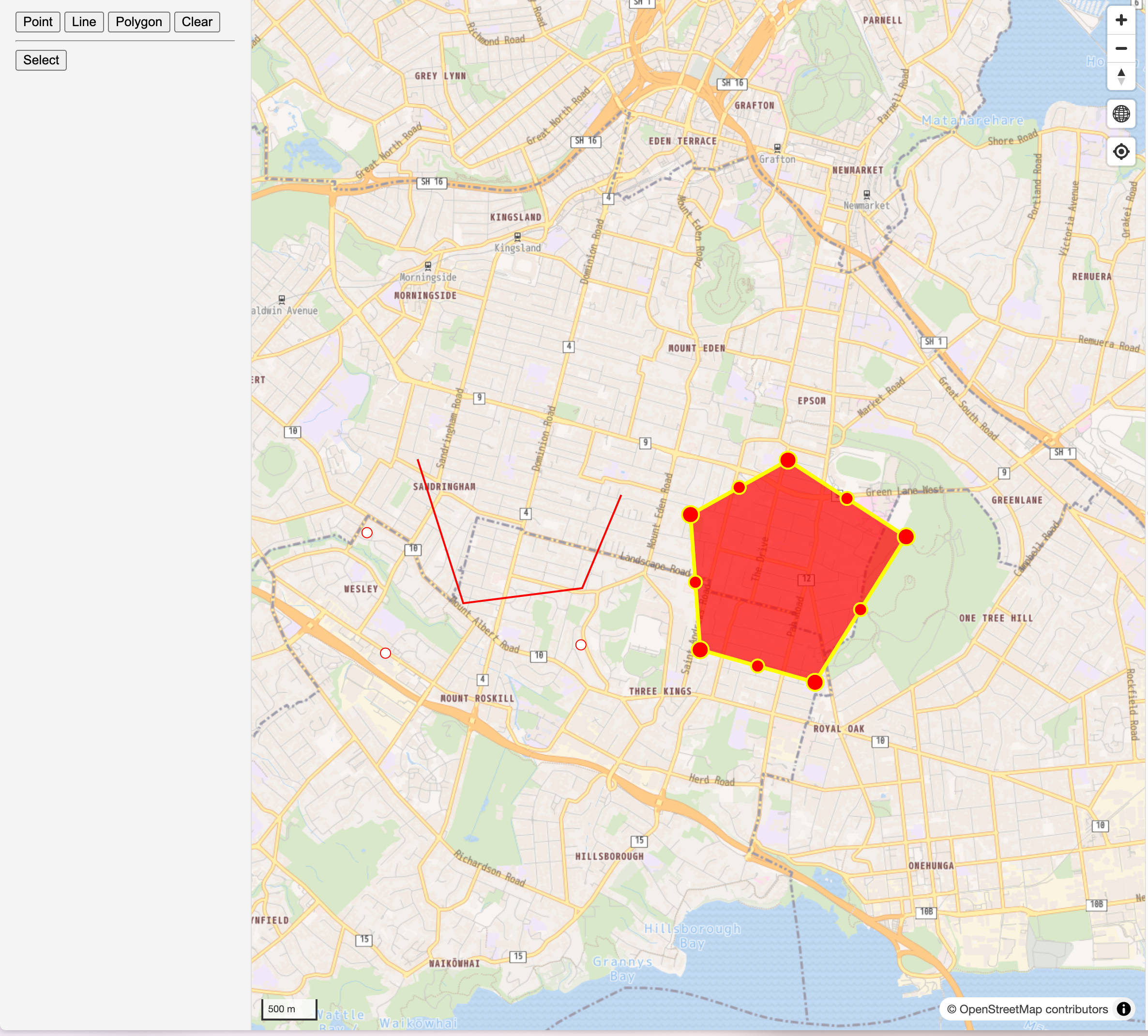

Figure 2: Change color for TerraDrawSelectMode

Testing Your Implementation

1. Save your changes and the Vite development server should automatically reload
2. Open your browser to http://localhost:5173
3. Check drawing style - draw points, lines and polygons to ensure colours are changed.
4. Check select mode style - select point, line and polygon to ensure custom style is applied correctly
5. Adjust parameters of select mode - Try to change select mode parameters to change style to your own.

Extra challenge

Furthermore, you can try to pass styling function instead of fixed value like below.

import { TerraDrawExtend } from 'terra-draw';

// Function to generate a random hex color - can adjust as needed
function getRandomColor() {
  const letters = "0123456789ABCDEF";
  let color = "#";
  for (let i = 0; i < 6; i++) {
    color += letters[Math.floor(Math.random() * 16)];
  }
  return color;
}

// Cache for each feature id mapped to a hex color string
let colorCache: Record<TerraDrawExtend.FeatureId, string> = {};

new TerraDrawPolygonMode({
    styles: {
        fillColor: ({ id }) => {
            // Get the color from the cache or generate a new one
            colorCache[id] = colorCache[id] || getRandomColor();
            return colorCache[id];
        },
    },
}),

The above example is to change fill color of polygons randomly.

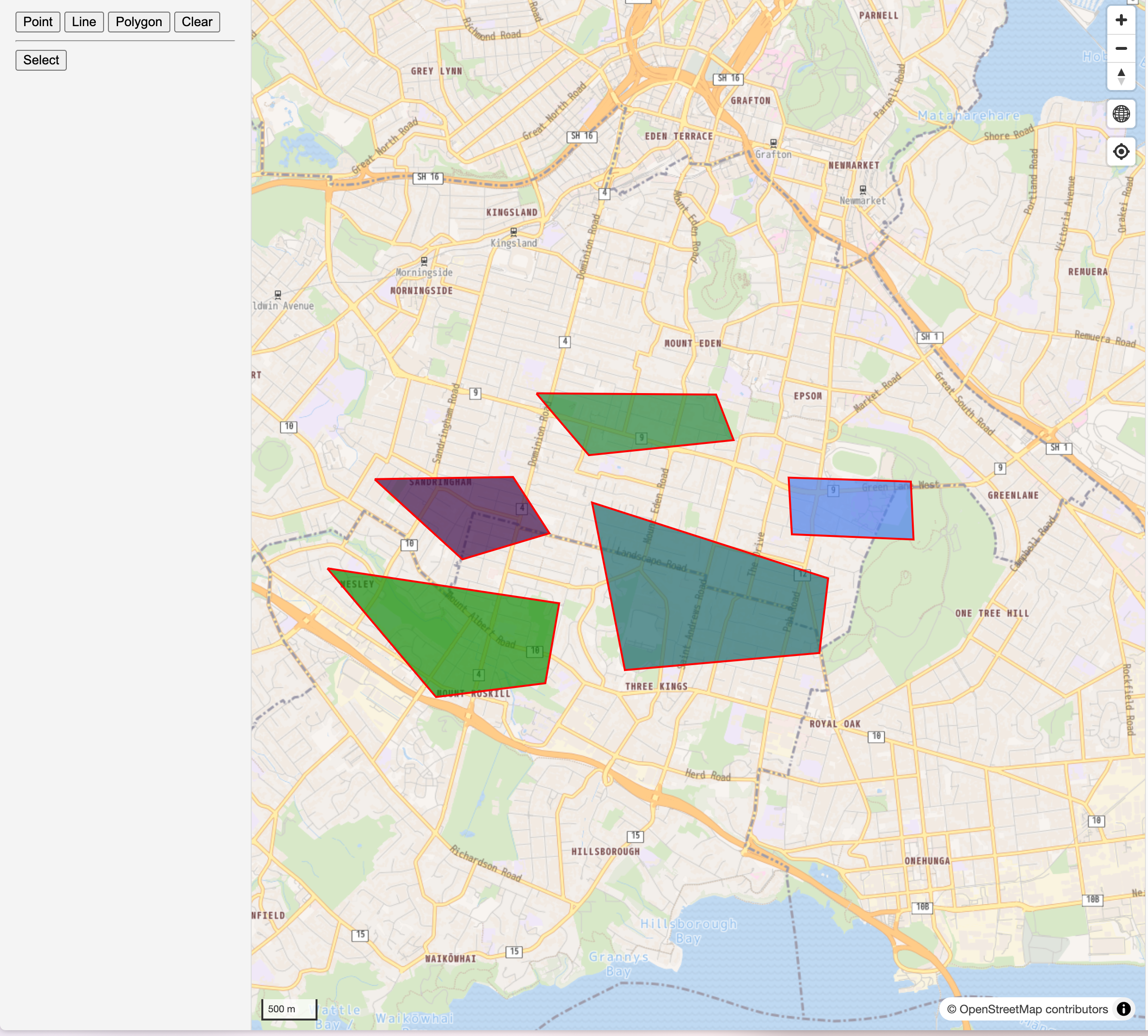

Figure 3: Assigning random fill color for TerraDrawPolygonMode

Example code

The above example code is available at example/custom-style branch.

What's Next?

Now that you understand custom styling, let's explore Terra Draw's event handling capabilities.
