Event Handling

Terra Draw provides comprehensive event handling following the official events documentation.

Terra Draw Events

There are four events change, finish, select and deselect are dispatched by Terra Draw.

You can listen an event through on method like so.

draw.on("change", () => {
  // Do something
});

change event

change event returns ids and type.

• ids is the list of Terra Draw feature ID affected for the event
• type is the types of change event as described follows.

create type

draw.on("change", (ids, type) => {
  //After creating a feature
  if (type === "create") {
    for (const id of ids) {
        const feature = draw.getSnapshotFeature(id)
        // Do something
    }
  }
});

update type

draw.on("change", (ids, type) => {
  //After updating a feature
  if (type === "update") {
    for (const id of ids) {
        const feature = draw.getSnapshotFeature(id)
        // Do something
    }
  }
});

delete type

draw.on("change", (ids, type) => {
  //After updating a feature
  if (type === "delete") {
    const snapshot = draw.getSnapshot();
    // Do something
  }
});

Note

feature is removed from Terra Draw store, so you cannot fetch deleted features by IDs.

styling type

draw.on("change", (ids, type) => {
  //After styling is changed
  if (type === "styling") {
    for (const id of ids) {
        const feature = draw.getSnapshotFeature(id)
        // Do something
    }
  }
});

finish event

finish event is dispatched when a feature finish drawing, and it returns id and context.

• id is the Terra Draw feature ID affected for the event
• context is an object containing the following properties.
• mode: modeName of finished feature
• action: there are four actions supported as described follows.

draw.on("finish", (id: string, context: { action: string, mode: string }) => {
  if (context.action === 'draw') {
    // Do something for draw finish event for a feature
  } else if (context.action === 'dragFeature') {
    // Do something for a drag finish event for a feature
  } else if (context.action === 'dragCoordinate') {
    // Do something for a drag finish event for a coordinate
  }else if (context.action === 'dragCoordinateResize') {
    // Do something for a drag finish event for resizing a feature
  }
});

select event

select event is dispatched when a feature is selected by TerraDrawSelectMode.

draw.on("select", (id: string) => {
  // Do something
  //...
});

deselect event

deselect event is dispatched when a feature is deselected by TerraDrawSelectMode.

draw.on("deselect", () => {
  // Do something
  //...
});

Check Terra Draw events behaviours

We are going to add scripts to listen Terra Draw events to monitor how it behaves.

Firstly, add the below script in script tag section.

let draw: TerraDraw | undefined = $state();

+let selectedFeature: string = $state('');

Secondly, add the following HTML in the last on sidebar class.

<!-- Add text area for selected feature here -->
<hr />
<label for="selected-feature-geojson">Selected Feature GeoJSON:</label>
<textarea
    id="selected-feature-geojson"
    bind:value={selectedFeature}
    style="width: 100%; resize: vertical;"
    rows="10"
    readonly
></textarea>

Lastly, add the below script in the last of once('load') function of maplibre.

map.once('load', () => {
    // Start drawing
    draw?.start();

    // Add codes from here
    draw?.on('change', (ids, type) => {
        if (!draw) return;
        if (type === 'create') {
            // After creating a feature
            for (const id of ids) {
                // Do something
                console.log(`change: Feature created: ${id}`);
            }
        } else if (type === 'update') {
            //After updating a feature
            for (const id of ids) {
                console.log(`change: Feature updated: ${id}`);
            }
        } else if (type === 'delete') {
            //After deleting a feature
            for (const id of ids) {
                console.log(`change: Feature deleted: ${id}`);
            }
        } else if (type === 'styling') {
            //After styling is changed
            for (const id of ids) {
                console.log(`change: Feature styling updated: ${id}`);
            }
        }
    });

    draw?.on(
        'finish',
        (id: TerraDrawExtend.FeatureId, context: { action: string; mode: string }) => {
            if (context.action === 'draw') {
                // Do something for draw finish event for a feature
                console.log(`finish: Feature drawn: ${id} in mode: ${context.mode}`);
            } else if (context.action === 'dragFeature') {
                // Do something for a drag finish event for a feature
                console.log(`finish: Feature dragged: ${id} in mode: ${context.mode}`);
            } else if (context.action === 'dragCoordinate') {
                // Do something for a drag finish event for a coordinate
                console.log(`finish: Coordinate dragged in feature: ${id} in mode: ${context.mode}`);
            } else if (context.action === 'dragCoordinateResize') {
                // Do something for a drag finish event for resizing a feature
                console.log(`finish: Coordinate resized in feature: ${id} in mode: ${context.mode}`);
            }
        }
    );

    draw?.on('select', (id: TerraDrawExtend.FeatureId) => {
        console.log(`selected: ${id}`);
        const feature = draw?.getSnapshotFeature(id);
        selectedFeature = feature ? JSON.stringify(feature, null, 2) : '';
    });

    draw?.on('deselect', () => {
        console.log(`deselected`);
        selectedFeature = '';
    });

Testing Your Implementation

1. Save your changes and the Vite development server should automatically reload
2. Open your browser to http://localhost:5173
3. Open console in your browser to minitor what Terra Draw events are dispatched.
4. Drawing features to check Terra Draw events logs
5. Select/Deselect feature to check how actual GeoJSON looks like in Terra Draw store.

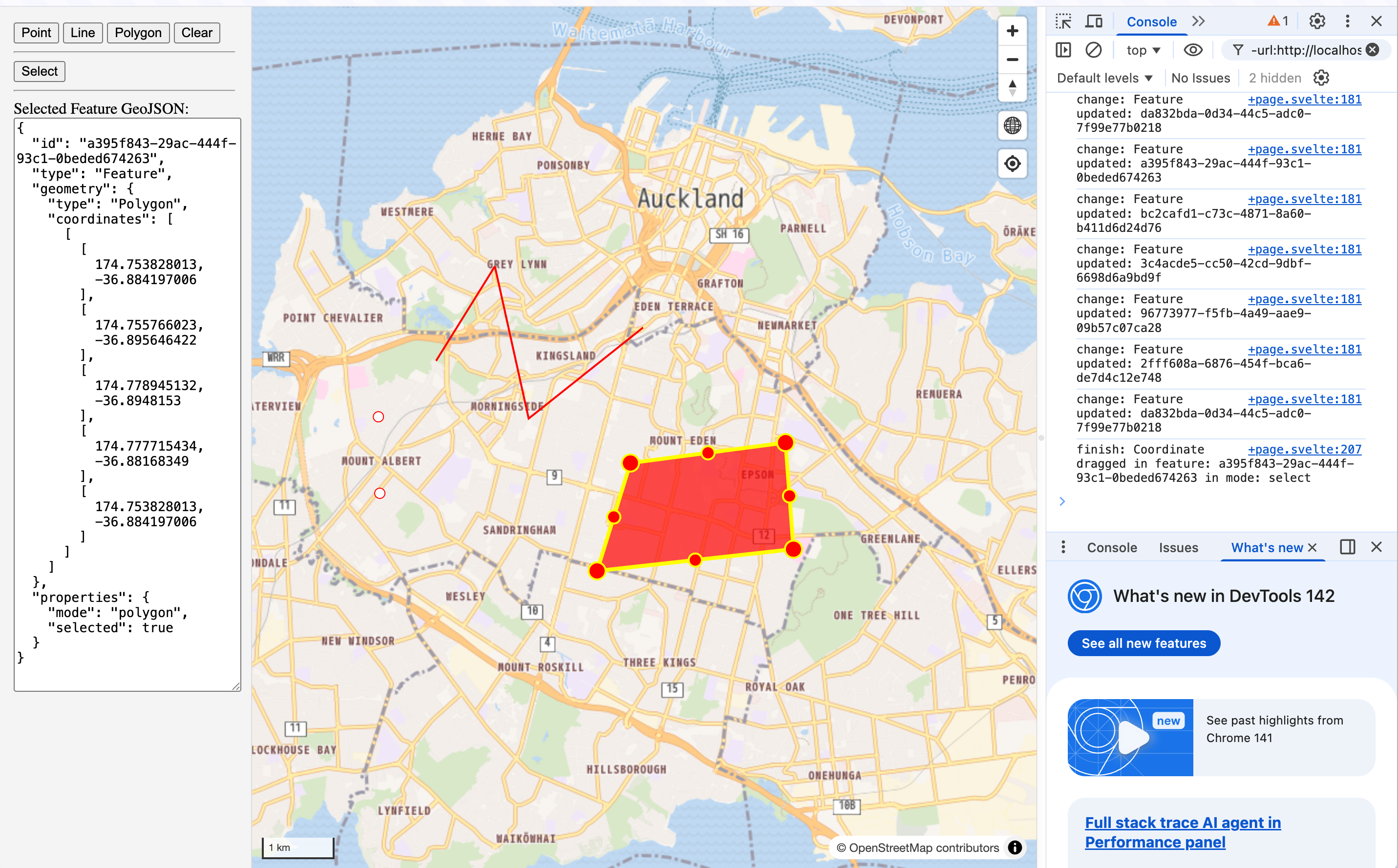

You should be able to events like below screenshot.

Figure 1: Monitoring Terra Draw events

Example code

The above example code is available at example/terradraw-events branch.

What's Next?

Now that you understand events, let's explore Terra Draw's data management capabilities.
