Data Management

Terra Draw provides powerful data management capabilities following the official store documentation.

Add GeoJSON features to Terra Draw store

You can add features programmatically by using draw.addFeatures:

Let's add a default point at Auckland University of Technology when a page is initially loaded.

Add the below code in the last of map.once('load') event.

// Add a default point feature at Auckland University of Technology
draw?.addFeatures([
    {
        id: '39d86739-6012-40ae-bb8c-3cb0f0694b92',
        type: 'Feature',
        geometry: {
            type: 'Point',
            coordinates: [174.766430366, -36.85309055]
        },
        properties: {
            mode: 'point'
        }
    }
]);

Note

mode property must exist in GeoJSON properties and corresponding mode must be added to Terra Draw in advance.

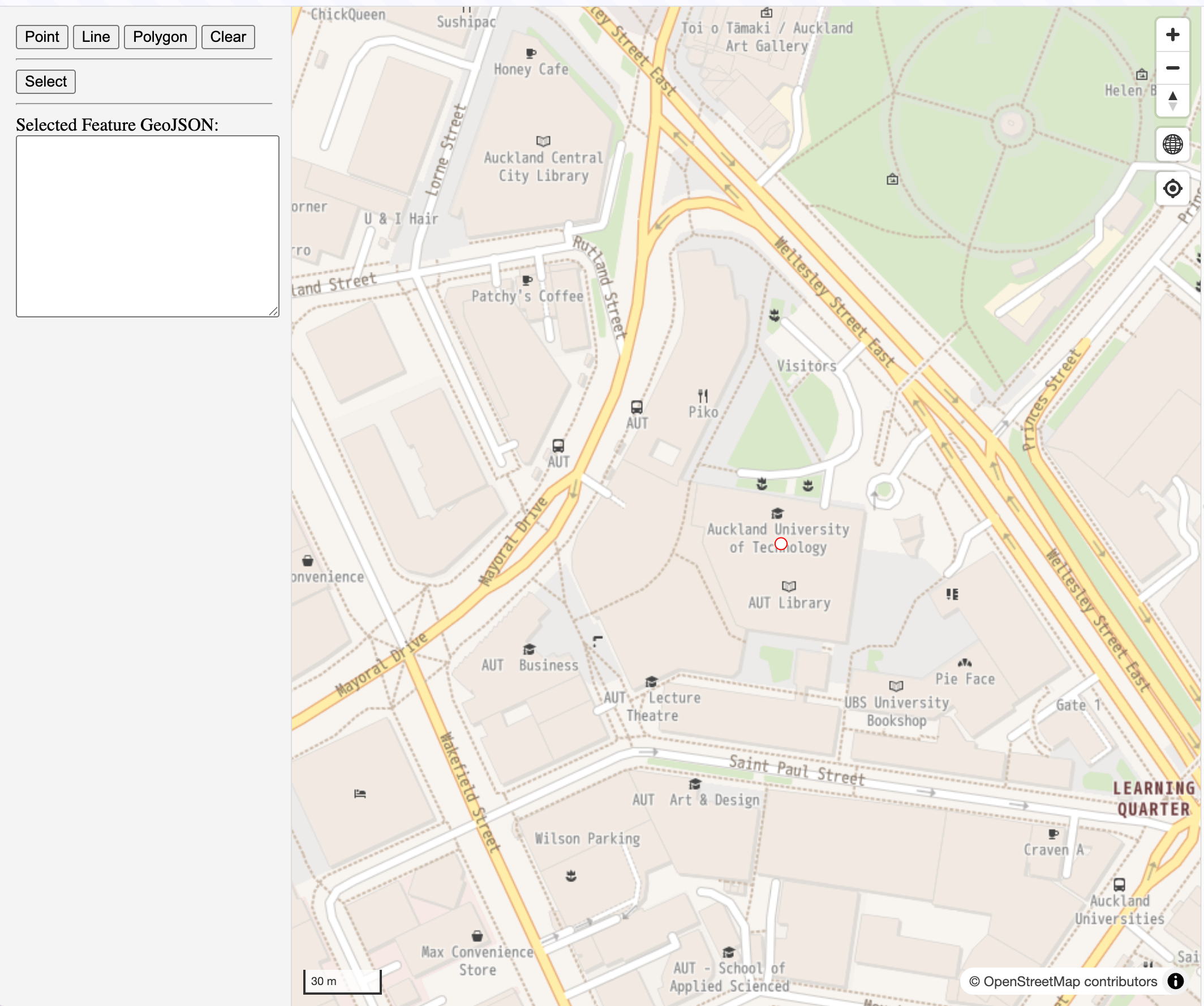

Show initial data at Auckland University of Technology on the map
Figure 1: Show initial data at Auckland University of Technology on the map

Get features from Terra Draw store

In the last exercise 5, we already used to fetch feature from Terra Draw store.

// get all features from store
const features = draw.getSnapshot();

// get feature by ID from store
const feature = draw.getSnapshotFeature(id);

Delete selected feature by UI

Let's add a delete button to allow users to remove selected feature.

Add the below handleDeleteClick method in script tag section

const handleDeleteClick = () =>{
    const targetFeature = selectedFeature ? JSON.parse(selectedFeature) : null;
    if (targetFeature && targetFeature.id) {
        draw?.removeFeatures([targetFeature.id]);
    }
};

Then, add the following HTML in the last of sidebar class.

<!-- Add delete mode button here -->
<hr />
<button onclick={handleDeleteClick} disabled={!selectedFeature}>Delete</button>

You should be able to remove a selected feature by clicking Delete button.

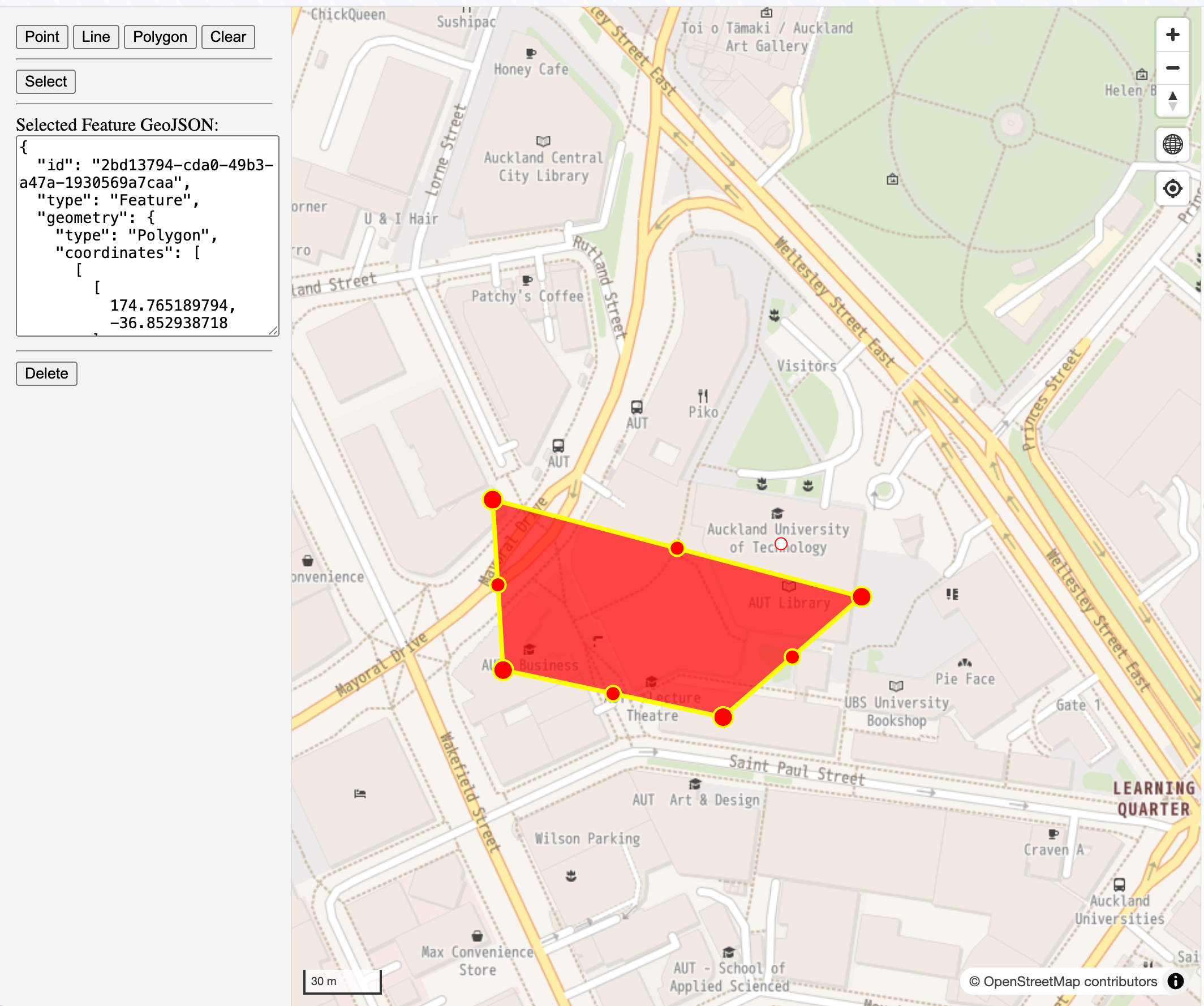

Delete button to remove selected feature programatically
Figure 2: Delete button to remove selected feature programatically

Testing Your Implementation

  1. Save your changes and the Vite development server should automatically reload
  2. Open your browser to http://localhost:5173
  3. Check initial point is on the map: confirm the point is shown at AUT.
  4. Test Delete button to ensure only selected feature is deleted from store.

Example code

The above example code is available at example/data-management branch.

What's Next?

Now, you have mastered most core functionalities of Terra Draw with Maplibre GL JS.

In the next step, we are going to learn how Leaflet - one of the most popular mapping library, integrated with Terra Draw.
