Exercise 3: TerraDrawSelectMode

Let's add TerraDrawSelectMode to allow selecting and modifying features. Update your src/routes/+page.svelte:

Add select mode

Firstly, import TerraDrawSelectMode to your +page.svelte`.

import {
    TerraDraw,
    TerraDrawPointMode,
    TerraDrawLineStringMode,
    TerraDrawPolygonMode,
    TerraDrawSelectMode // add here
} from 'terra-draw';

Then, TerraDrawSelectMode needs to be added to modes through Terra Draw constructor.

draw = new TerraDraw({
    adapter: new TerraDrawMapLibreGLAdapter({ map }),
    modes: [
        new TerraDrawPointMode(),
        new TerraDrawLineStringMode(),
        new TerraDrawPolygonMode(),
        // Add Select mode with feature and coordinate editing enabled
        new TerraDrawSelectMode({
            flags: {
                point: {
                    feature: {
                        draggable: true
                    }
                },
                linestring: {
                    feature: {
                        draggable: true,
                        rotateable: true,
                        coordinates: {
                            midpoints: true,
                            draggable: true,
                            deletable: true,
                        }
                    }
                },
                polygon: {
                    feature: {
                        draggable: true,
                        rotateable: true,
                        coordinates: {
                            midpoints: true,
                            draggable: true,
                            deletable: true,
                        }
                    }
                }
            }
        })
    ]
});

Add buttons

Add a new button for Select mode to HTML section of component

<aside class="sidebar">
    <!-- Use this space for adding additional elements for workshop -->
    <button onclick={() => handleModeClick('point')}>Point</button>
    <button onclick={() => handleModeClick('linestring')}>Line</button>
    <button onclick={() => handleModeClick('polygon')}>Polygon</button>
    <button onclick={handleClearClick}>Clear</button>

    <!-- Add select mode button here -->
    <hr>
    <button onclick={() => handleModeClick('select')}>Select</button>
</aside>

Now, you can select a feature after drawing, then can drag or modify it.

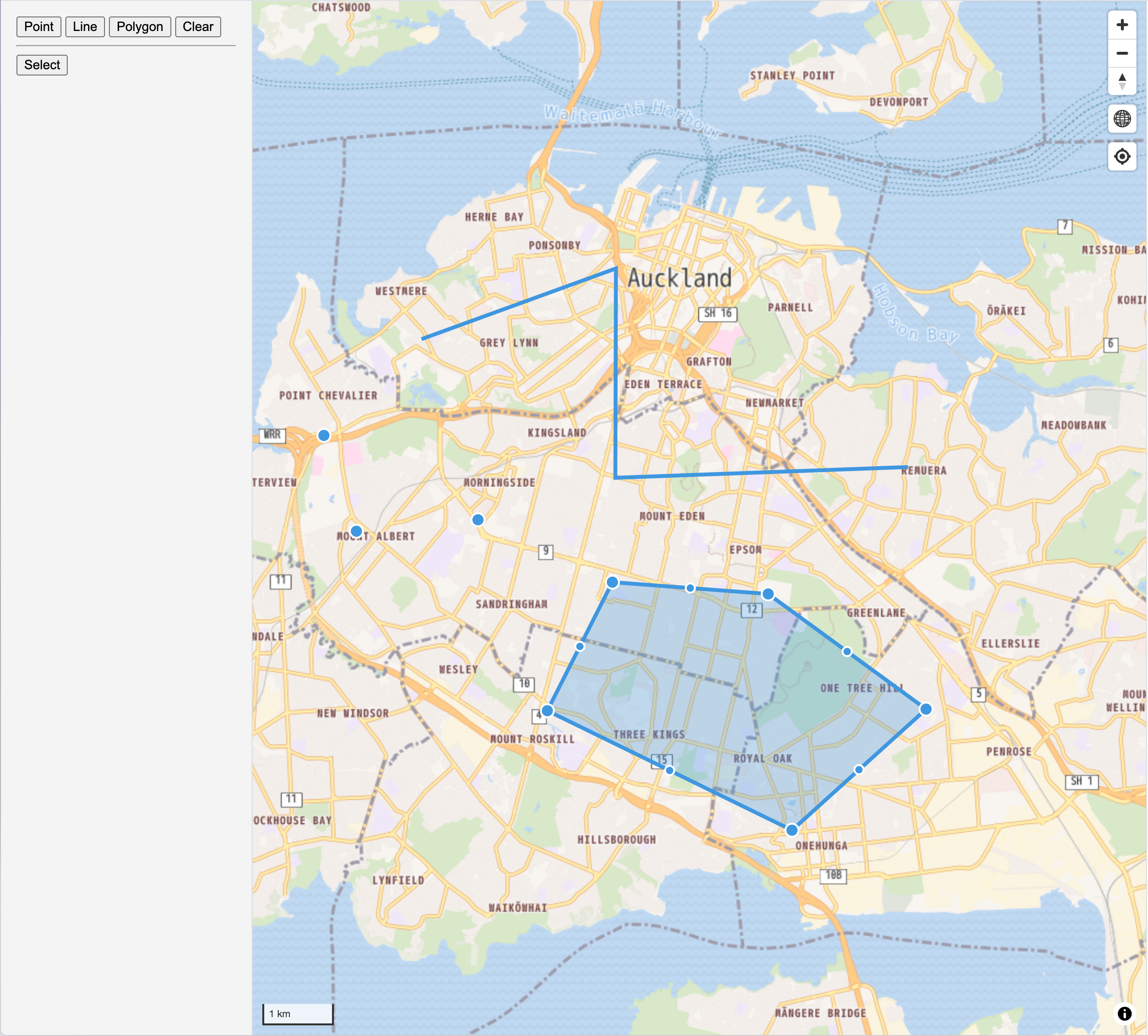

Figure 1: Basic example with Select mode

Testing Your Implementation

1. Save your changes and the Vite development server should automatically reload
2. Open your browser to http://localhost:5173
3. Test select mode - click select button to drag or modify features you have drawn.
4. Adjust parameters of select mode - Try to change select mode parameters to see how parameters will behave on Select mode.

Extra challenge

The following options are available for TerraDrawSelectMode. Change or add options to see how parameters affect Select mode behaviour.

polygon: {
    feature: {
        draggable: true, // you can drag a polygon
        rotateable: true, // you can rotate with ctrl+r (ctrl+command+r in mac)
        coordinates: {
            midpoints: true,

            // Can be moved
            draggable: true,

            // Can be deleted
            deletable: true,

            // Can snap to other coordinates from geometries _of the same mode_
            snappable: true,

            // Allow resizing of the geometry from a given origin.
            // center will allow resizing of the aspect ratio from the center
            // and opposite allows resizing from the opposite corner of the
            // bounding box of the geometry.
            resizable: 'center', // can also be 'opposite', 'center-fixed', 'opposite-fixed'
        }
    }
}

Example code

The above example code is available at example/with-select-mode branch.

What's Next?

Now you can select or modify features and learned basics of Terra Draw implementation. Let's start learning more advanced features in the next step.
