Project Setup with Maplibre

We'll use SvelteKit for our development environment as it provides excellent developer experience with fast builds and hot reload.

1. Download workshop template project

A template project used for the workshop is prepared. You can download it by the below command.

git clone [email protected]:watergis/terradraw-workshop-template.git

If you don't use SSH, you can clone via HTTP using

git clone https://github.com/watergis/terradraw-workshop-template.git

Go to 3. launch Sveltekit section to continue.

2. Create workshop template manually

If you want to setup it manually, please follow the below instruction.

Create a New Project

This workshop uses SvelteKit as web framework.

npx sv create terradraw-workshop-template

After executing the above command, you will see the following instructions.

Please select:

• SvelteKit minimal
• TypeScript
• prettier, eslint

┌  Welcome to the Svelte CLI! (v0.9.12)
│
◇  Which template would you like?
│  SvelteKit minimal
│
◇  Add type checking with TypeScript?
│  Yes, using TypeScript syntax
│
◆  Project created
│
◇  What would you like to add to your project? (use arrow keys / space bar)
│  prettier, eslint
│
◆  Successfully setup add-ons
│
◇  Which package manager do you want to install dependencies with?
│  pnpm
│
◆  Successfully installed dependencies
│
◇  Successfully formatted modified files
│
◇  What's next? ───────────────────────────────╮
│                                              │
│  📁 Project steps                            │
│                                              │
│    1: cd terradraw-workshop-template         │
│    2: pnpm run dev --open                    │
│                                              │
│  To close the dev server, hit Ctrl-C         │
│                                              │
│  Stuck? Visit us at https://svelte.dev/chat  │
│                                              │
├──────────────────────────────────────────────╯
│
└  You're all set!

cd terradraw-workshop-template
pnpm dev

You can open localhost:5173 to see the default website of SvelteKit now.

Press ctrl+c to terminate local server.

Official documentation how to setup a ScelteKit project can be found at svelte.dev/docs/kit/creating-a-project.

Setup Maplibre and Terra Draw

Open terradraw-workshop-template project on your vscode, and open a terminal.

Install dependencies

pnpm install -D maplibre-gl terra-draw terra-draw-maplibre-gl-adapter

Setup a blank Maplibre map

Find +page.svelte file under src/route folder, and open it on vscode.

Delete the following default HTML.

<h1>Welcome to SvelteKit</h1>
<p>Visit <a href="https://svelte.dev/docs/kit">svelte.dev/docs/kit</a> to read the documentation</p>

Paste the following code to +page.svelte.

<script lang="ts">
    import {
        AttributionControl,
        GeolocateControl,
        GlobeControl,
        Map,
        NavigationControl,
        ScaleControl
    } from 'maplibre-gl';
    import { onMount } from 'svelte';
    import 'maplibre-gl/dist/maplibre-gl.css';

    let mapContainer: HTMLDivElement | undefined = $state();
    let map: Map | undefined = $state();

    onMount(() => {
        if (!mapContainer) return;
        map = new Map({
            container: mapContainer,
            style: {
                version: 8,
                name: 'OpnenStreetMap Raster',
                sources: {
                    osm: {
                        type: 'raster',
                        tiles: ['https://tile.openstreetmap.jp/{z}/{x}/{y}.png'],
                        tileSize: 256,
                        maxzoom: 19,
                        attribution:
                            '<a href="https://www.openstreetmap.org/copyright" target="_blank">&copy; OpenStreetMap contributors</a>'
                    }
                },
                layers: [
                    {
                        id: 'osm',
                        type: 'raster',
                        source: 'osm'
                    }
                ]
            },
            center: [174.7629, -36.8587],
            zoom: 11,
            hash: true,
            attributionControl: false
        });
        map.addControl(new NavigationControl(), 'top-right');
        map.addControl(new GlobeControl(), 'top-right');
        map.addControl(
            new GeolocateControl({
                positionOptions: { enableHighAccuracy: true },
                trackUserLocation: true
            }),
            'top-right'
        );
        map.addControl(new ScaleControl({ maxWidth: 80, unit: 'metric' }), 'bottom-left');
        map.addControl(new AttributionControl({ compact: true }), 'bottom-right');
    });
</script>

<div class="main">
    <aside class="sidebar">
        <!-- Use this space for adding additional elements for workshop -->
    </aside>
    <div class="map" bind:this={mapContainer}></div>
</div>

<style lang="scss">
    .main {
        display: flex;
        height: 100vh;
        width: 100vw;

        .sidebar {
            width: 260px;
            background: #f4f4f4;
            border-right: 1px solid #ddd;
            padding: 1rem;
            box-sizing: border-box;
            overflow-y: auto;
        }
        .map {
            flex: 1;
            height: 100%;
            width: 100%;
        }
    }
</style>

Disable SSR

As default setting of SvelteKit, the above code cannot work with SSR.

Add +page.ts under src/routes folder and paste the below script.

export const ssr = false;

3. Launch sveltekit

Open a terminal, run local server.

cd terradraw-workshop-template
pnpm dev

You can see the map for Auckland like the below screenshot.

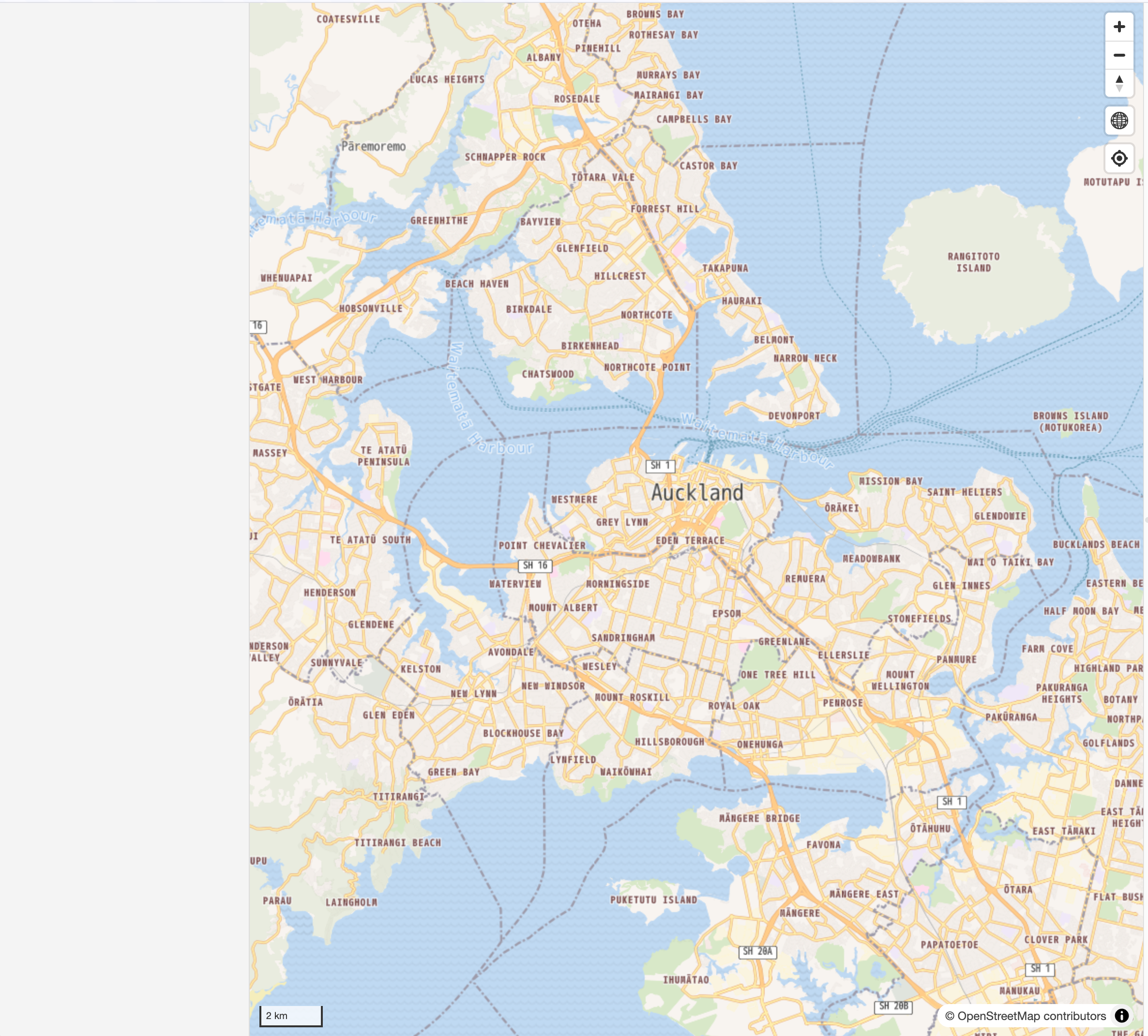

Figure 1: Initial map after launching server

4. Project Structure

Your project structure should look like this:

terradraw-workshop-template/
.
├── eslint.config.js
├── node_modules
├── package.json
├── pnpm-lock.yaml
├── pnpm-workspace.yaml
├── README.md
├── src
│   ├── app.d.ts
│   ├── app.html
│   ├── lib
│   │   ├── assets
│   │   │   └── favicon.svg
│   │   └── index.ts
│   └── routes
│       ├── +layout.svelte
│       ├── +page.svelte <- We use this file in the workshop
│       └── +page.ts
├── static
│   └── robots.txt
├── svelte.config.js
├── tsconfig.json
└── vite.config.ts

We mainly use src/routes/+page.svelte file in the workshop.

What's Next?

With your environment properly set up using SvelteKit and Maplibre, you're ready to start learning Terra Draw fundamentals.
