Intergation with Leaflet¶
Leaflet is one of the most popular mappling library used everywhere.
We are going to use the last example 6's code to switch maplibre to leaflet with minimal changes.
You can know how TerraDraw's unified API works across different mapping libraries.
Create Leaflet folder¶
In Sveltekit, let's create leaflet folder under routes, then copy following files:
- copy
src/routes/+page.sveltetosrc/routes/leaflet/+page.svelte. - copy
src/routes/+page.tstosrc/routes/leaflet/+page.ts.
Now you can access to new leaflet page through localhost:5173/leaflet.
However, everything on leaflet page is still using maplibre. We are going to replace maplibre to leaflet.
Install Leaflet¶
Install Leaflet to dependencies.
pnpm install -D leaflet @types/leaflet terra-draw-leaflet-adapter
Replace maplibre with leaflet¶
You only need to change <script> tag section. The below is how you can change the code.
<script lang="ts">
- import {
- AttributionControl,
- GeolocateControl,
- GlobeControl,
- Map,
- NavigationControl,
- ScaleControl
- } from 'maplibre-gl';
import { onMount } from 'svelte';
- import 'maplibre-gl/dist/maplibre-gl.css';
import {
TerraDraw,
TerraDrawPointMode,
TerraDrawLineStringMode,
TerraDrawPolygonMode,
TerraDrawSelectMode,
TerraDrawExtend
} from 'terra-draw';
- import { TerraDrawMapLibreGLAdapter } from 'terra-draw-maplibre-gl-adapter';
// import leaflet and TerraDrawLeafletAdapter
+ import { TerraDrawLeafletAdapter } from 'terra-draw-leaflet-adapter';
+ import L from 'leaflet';
let mapContainer: HTMLDivElement | undefined = $state();
let map: Map | undefined = $state();
let draw: TerraDraw | undefined = $state();
let selectedFeature: string = $state('');
onMount(() => {
if (!mapContainer) return;
- map = new Map({
- container: mapContainer,
- style: {
- version: 8,
- name: 'OpnenStreetMap Raster',
- sources: {
- osm: {
- type: 'raster',
- tiles: ['https://tile.openstreetmap.jp/{z}/{x}/{y}.png'],
- tileSize: 256,
- maxzoom: 19,
- attribution:
- '<a href="https://www.openstreetmap.org/copyright" target="_blank">© OpenStreetMap contributors</a>'
- }
- },
- layers: [
- {
- id: 'osm',
- type: 'raster',
- source: 'osm'
- }
- ]
- },
- center: [174.7629, -36.8587],
- zoom: 11,
- hash: true,
- attributionControl: false
- });
- map.addControl(new NavigationControl(), 'top-right');
- map.addControl(new GlobeControl(), 'top-right');
- map.addControl(
- new GeolocateControl({
- positionOptions: { enableHighAccuracy: true },
- trackUserLocation: true
- }),
- 'top-right'
- );
- map.addControl(new ScaleControl({ maxWidth: 80, unit: 'metric' }), 'bottom-left');
- map.addControl(new AttributionControl({ compact: true }), 'bottom-right');
// create Leaflet map object
+ map = L.map(mapContainer).setView([-36.8587, 174.7629], 11);
+
+ L.tileLayer('https://tile.openstreetmap.org/{z}/{x}/{y}.png', {
+ maxZoom: 19,
+ attribution: '© <a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a>'
+ }).addTo(map);
draw = new TerraDraw({
// Use TerraDrawLeafletAdapter instead of TerraDrawMapLibreGLAdapter
+ adapter: new TerraDrawLeafletAdapter({ map, lib: L }),
- // Using the MapLibre Adapter
- adapter: new TerraDrawMapLibreGLAdapter({ map }),
// Add the Point, LineString, Polygon and Select Mode
modes: [
new TerraDrawPointMode({
styles: {
pointColor: '#FFFFFF',
pointWidth: 5,
pointOutlineColor: '#FF0000',
pointOutlineWidth: 1
}
}),
new TerraDrawLineStringMode({
styles: {
lineStringColor: '#FF0000',
lineStringWidth: 2,
closingPointColor: '#FFFFFF',
closingPointWidth: 3,
closingPointOutlineColor: '#FF0000',
closingPointOutlineWidth: 1
}
}),
new TerraDrawPolygonMode({
styles: {
fillColor: '#FFFFFF',
fillOpacity: 0.7,
outlineColor: '#FF0000',
outlineWidth: 2,
closingPointColor: '#FFFFFF',
closingPointWidth: 3,
closingPointOutlineColor: '#FF0000',
closingPointOutlineWidth: 1
}
}),
// Add Select mode with feature and coordinate editing enabled
new TerraDrawSelectMode({
styles: {
// Point colour
selectedPointColor: '#FF0000',
selectedPointWidth: 7,
selectedPointOutlineColor: '#FFFF00',
selectedPointOutlineWidth: 2,
// LineString colour
selectedLineStringColor: '#FFFF00',
selectedLineStringWidth: 4,
// Polygon colour
selectedPolygonColor: '#FF0000',
selectedPolygonFillOpacity: 0.7,
selectedPolygonOutlineColor: '#FFFF00',
selectedPolygonOutlineWidth: 4,
// Selection point colour
selectionPointColor: '#FF0000',
selectionPointWidth: 8,
selectionPointOutlineColor: '#FFFF00',
selectionPointOutlineWidth: 2,
// Midpoint colour
midPointColor: '#FF0000',
midPointWidth: 6,
midPointOutlineColor: '#FFFF00',
midPointOutlineWidth: 2
},
flags: {
point: {
feature: {
draggable: true
}
},
linestring: {
feature: {
draggable: true,
rotateable: true,
coordinates: {
midpoints: true,
draggable: true,
deletable: true
}
}
},
polygon: {
feature: {
draggable: true,
rotateable: true,
coordinates: {
midpoints: true,
draggable: true,
deletable: true
}
}
}
}
})
]
});
// leaflet does not need `load` event.
- map.once('load', () => {
// Start drawing
draw?.start();
draw?.on('change', (ids, type) => {
if (!draw) return;
if (type === 'create') {
// After creating a feature
for (const id of ids) {
// Do something
console.log(`change: Feature created: ${id}`);
}
} else if (type === 'update') {
//After updating a feature
for (const id of ids) {
console.log(`change: Feature updated: ${id}`);
}
} else if (type === 'delete') {
//After deleting a feature
for (const id of ids) {
console.log(`change: Feature deleted: ${id}`);
}
} else if (type === 'styling') {
//After styling is changed
for (const id of ids) {
console.log(`change: Feature styling updated: ${id}`);
}
}
});
draw?.on(
'finish',
(id: TerraDrawExtend.FeatureId, context: { action: string; mode: string }) => {
if (context.action === 'draw') {
// Do something for draw finish event for a feature
console.log(`finish: Feature drawn: ${id} in mode: ${context.mode}`);
} else if (context.action === 'dragFeature') {
// Do something for a drag finish event for a feature
console.log(`finish: Feature dragged: ${id} in mode: ${context.mode}`);
} else if (context.action === 'dragCoordinate') {
// Do something for a drag finish event for a coordinate
console.log(`finish: Coordinate dragged in feature: ${id} in mode: ${context.mode}`);
} else if (context.action === 'dragCoordinateResize') {
// Do something for a drag finish event for resizing a feature
console.log(`finish: Coordinate resized in feature: ${id} in mode: ${context.mode}`);
}
}
);
draw?.on('select', (id: TerraDrawExtend.FeatureId) => {
console.log(`selected: ${id}`);
const feature = draw?.getSnapshotFeature(id);
selectedFeature = feature ? JSON.stringify(feature, null, 2) : '';
});
draw?.on('deselect', () => {
console.log(`deselected`);
selectedFeature = '';
});
// Add a default point feature at Auckland University of Technology
draw?.addFeatures([
{
id: '39d86739-6012-40ae-bb8c-3cb0f0694b92',
type: 'Feature',
geometry: {
type: 'Point',
coordinates: [174.766430366, -36.85309055]
},
properties: {
mode: 'point'
}
}
]);
- });
});
const handleModeClick = (mode: string) => {
draw?.setMode(mode);
};
const handleClearClick = () => {
draw?.clear();
};
const handleDeleteClick = () => {
const targetFeature = selectedFeature ? JSON.parse(selectedFeature) : null;
if (targetFeature && targetFeature.id) {
draw?.removeFeatures([targetFeature.id]);
}
};
</script>
You can see the change is really minumum and everything can work without changing anything on Terra Draw side.
TypeScript error for Leaflet with SvelteKit¶
Leaflet v1 with Sveltekit may have TypeScript error as default.
you may need to change module and moduleResolution to nodenext on tsconfig.json.
{
"extends": "./.svelte-kit/tsconfig.json",
"compilerOptions": {
"allowJs": true,
"checkJs": true,
"esModuleInterop": true,
"forceConsistentCasingInFileNames": true,
"resolveJsonModule": true,
"skipLibCheck": true,
"sourceMap": true,
"strict": true,
+ "module": "nodenext",
+ "moduleResolution": "nodenext"
- "moduleResolution": "bundler"
}
Example code¶

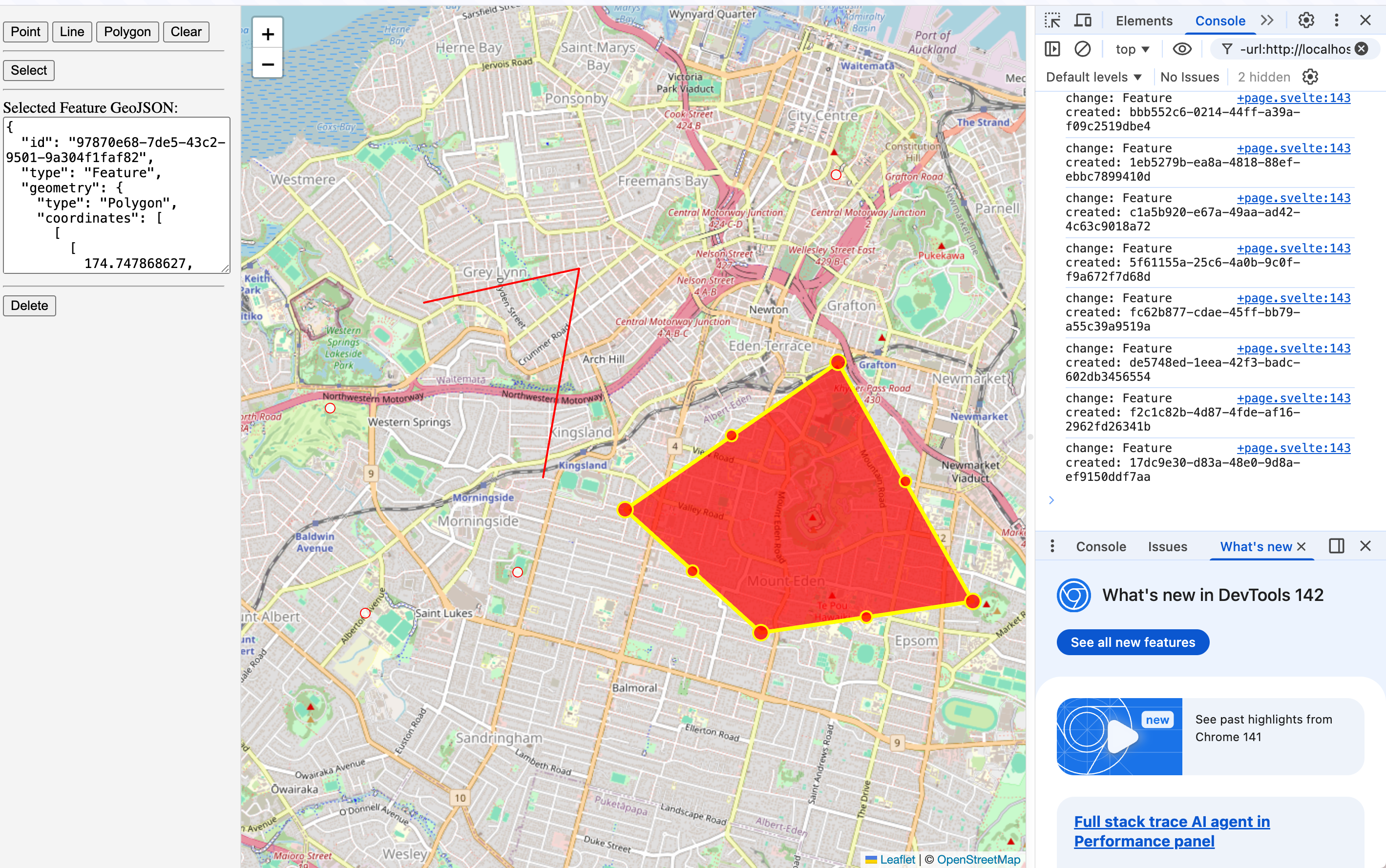

The above example code is available at example/leaflet branch.
What's Next?¶
Now, you know how Terra Draw's unified API works across different mappling library through an example of Leaflet integration.
In the next step, I am going to introduce a maplibre plugin developed particularly for maplibre intergration easily.
