Maplibre Terra Draw plugin¶

This section will learn a maplibre plugin for easy integration with Terra Draw.

maplibre-gl-terradraw¶

Through this workshop tutorials of Maplibre and Leaflet, now you have understood how Terra Draw works across different mapping libraries.

However, you still need to write quite a lot of codes to bring Terra Draw to your map application.

maplibre-gl-terradraw is developed for easy integration with maplibre.

Installation¶

Install the library like so.

pnpm add --save-dev @watergis/maplibre-gl-terradraw

Usage¶

Just add the four line of codes to your maplibre application

import { MaplibreTerradrawControl } from '@watergis/maplibre-gl-terradraw'
import '@watergis/maplibre-gl-terradraw/dist/maplibre-gl-terradraw.css'

const draw = new MaplibreTerradrawControl();
map.addControl(draw, 'top-left');

Supported Terra Draw modes¶

All Terra Draw modes are supported, and additional functionalities (delete, download buttons).

Available controls¶

There are following three controls available in the plugin.

Control	Description
MaplibreTerradrawControl	Standard control for drawing
MaplibreMeasureControl	Control for measuring distance, area and altitude
MaplibrevalhallaControl	Control for integrating with Valhalla API (Routing and Isochrone)

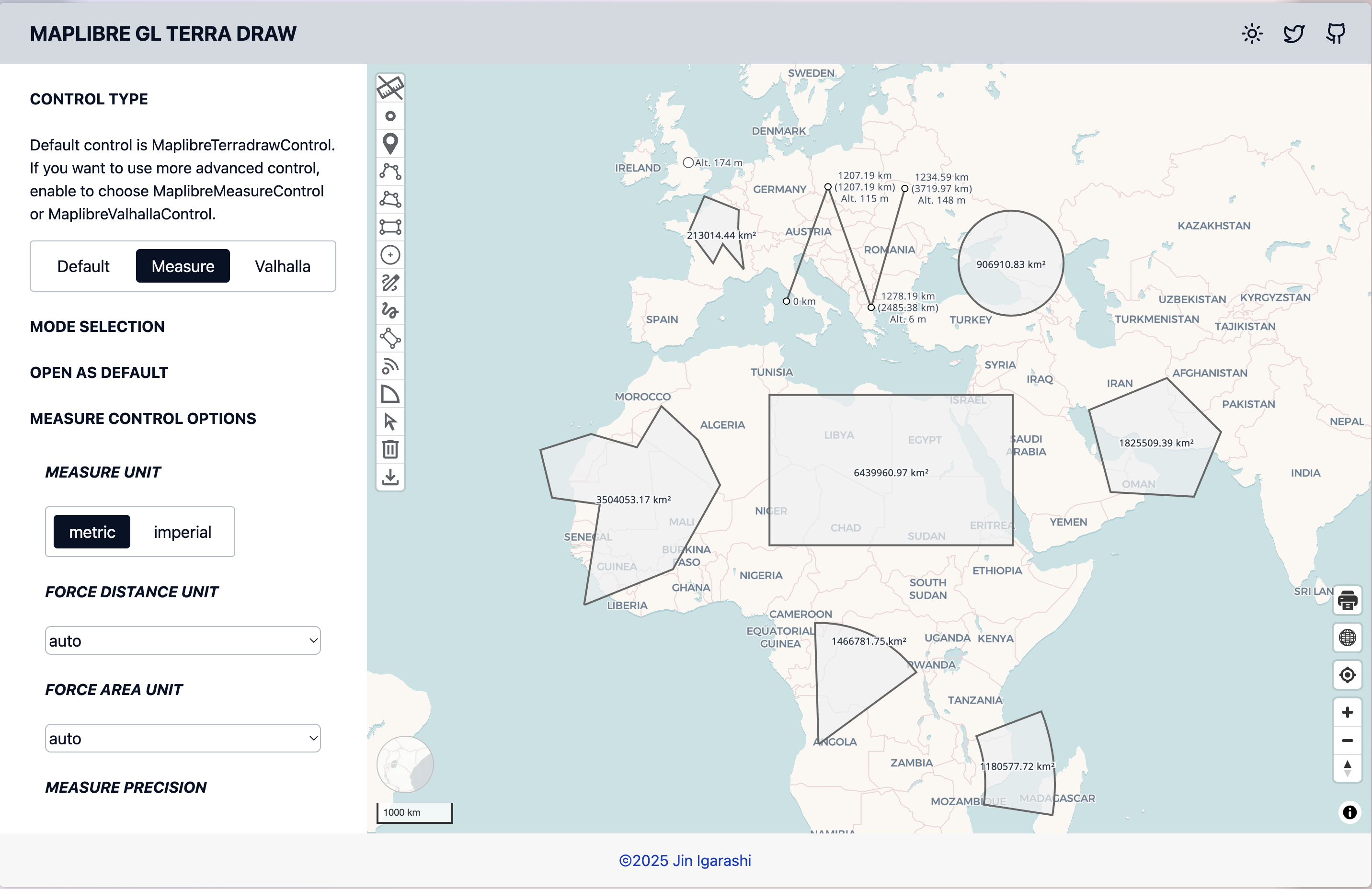

Figure 1: MaplibreMeasureControl for measuring distance, area and altitude

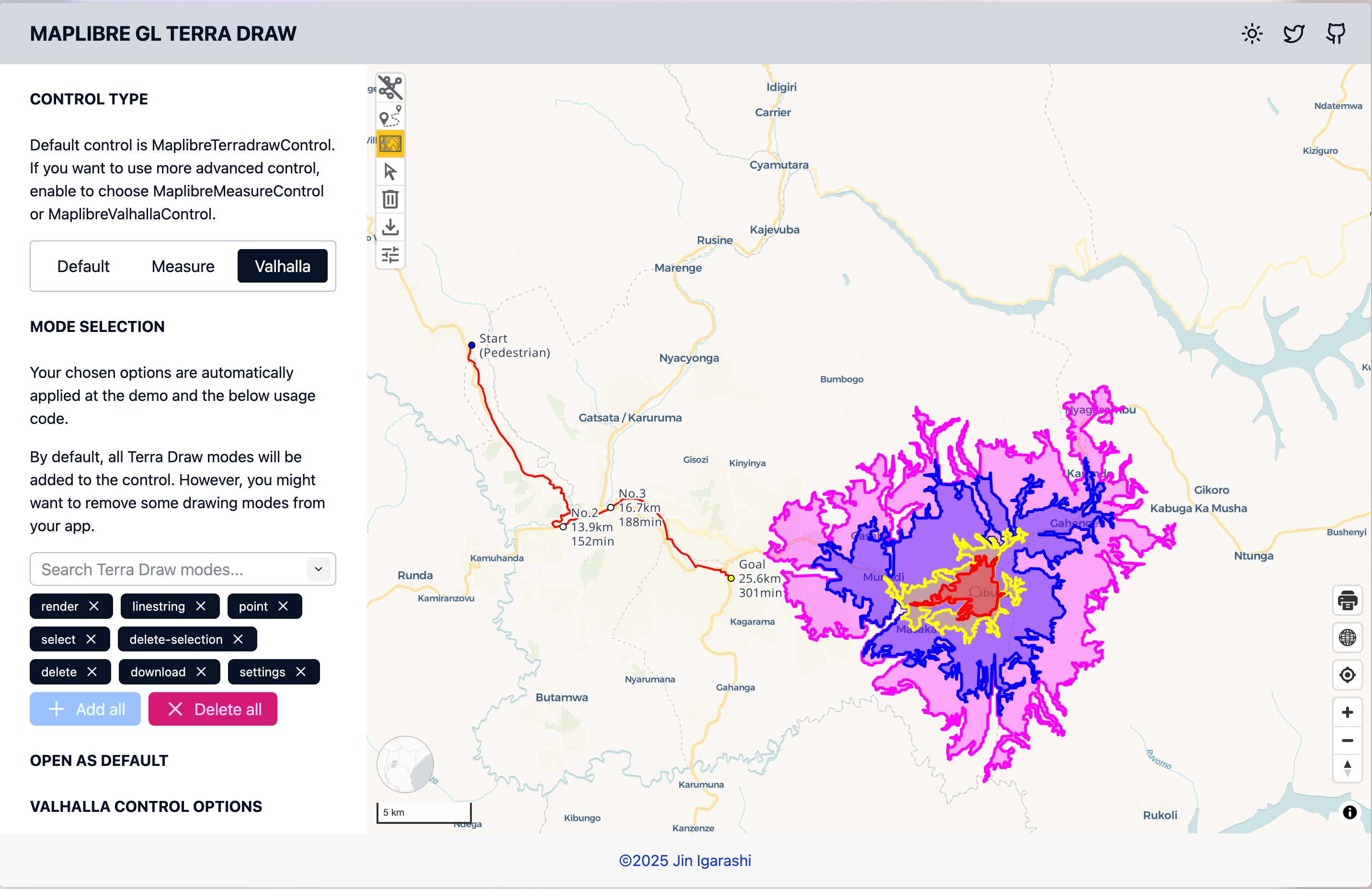

Figure 2: MaplibrevalhallaControl to integrate with Valhalla Routing and Isochrone API

All Terra Draw APIs are accessible¶

Through the plugin, all Terra Draw APIs are accessible via the plugin contructor and getTerra DrawInstance method.

const drawControl = new MaplibreTerradrawControl({
    modes: ['polygon', 'select', 'delete'], // choose what buttons are needed
    open: true, // set default state either expanded or collapsed
    modeOptions: // You can pass your own Terra Draw mode options to the plugin to override default setting
    adapterOptions: // You can pass your own adapter setting to the plugin
});

// You can get Terra Draw instance from the plugin to do whatever you want
const draw = drawControl.getTerraDrawInstance()
// do something

Demo¶

Open terradraw.water-gis.com/ for the demo of maplibre-gl-terradraw

13 examples are avalable how to configure Terra Draw and the plugin.

Source code¶

GitHub repository is at watergis/maplibre-gl-terradraw.
